Name: EFR32FG13P233F512GM48-B
Brand: Silicon Labs
SKU: EFR32FG13P233F512GM48-B
Availability: InStock

REF: EFR32FG13P233F512GM48-B Silicon Labs

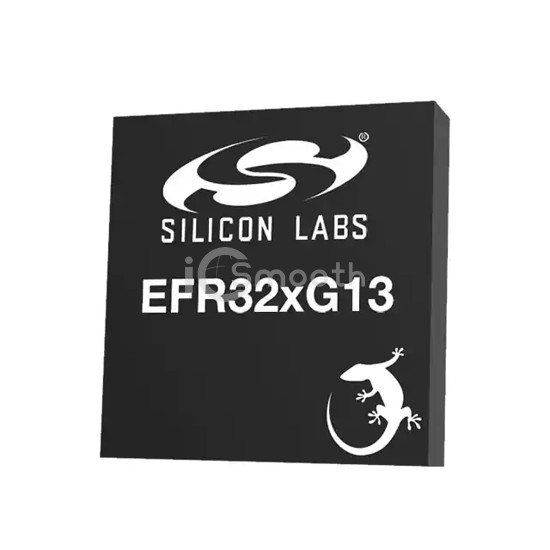

EFR32FG13P233F512GM48-B

IC RF 802.15.4 48VFQFN

EFR32FG13P233F512GM48-B is a RF Transceiver ICs manufactured by Silicon Labs. IC RF 802.15.4 48VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.8V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,618

Specifications

19 parameters

Product Status	Discontinued at Digi-Key
Type	-
RF Family/Standard	802.15.4, General ISM < 1GHz
Protocol	-
Modulation	2FSK, 4FSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, OOK, OQPSK
Frequency	169MHz, 315MHz, 433MHz, 490MHz, 868MHz, 915MHz, 2.4GHz
Data Rate (Max)	2Mbps
Power - Output	20dBm
Sensitivity	-102dBm
Memory Size	512kB Flash, 64kB RAM

Serial Interfaces	I²C, UART, USART
GPIO	28
Voltage - Supply	1.8V ~ 3.8V
Current - Receiving	8.4mA ~ 11mA
Current - Transmitting	8.5mA ~ 134.3mA
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (7x7)
