PR49MF11NSZF

In Stock: 2,493

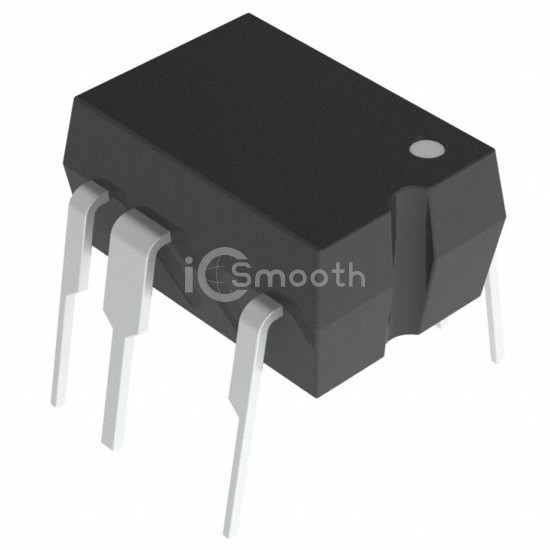

PR49MF11NSZF - Sharp Microelectronics - Optoisolators - Triac, SCR Output
REF: PR49MF11NSZF Sharp Microelectronics
PR49MF11NSZF

Sharp Microelectronics

OPTOISOLATOR 4KV PWR TRIAC 8DIP

PR49MF11NSZF is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 4KV PWR TRIAC 8DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Request a Quote

In Stock: 2,493

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac, Power
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation4000Vrms
Voltage - Off State800 V
Static dV/dt (Min)50V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)900 mA
Current - Hold (Ih)50mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-25°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package8-DIP
Approval AgencyCSA, UR
