PR39MF22YSZF

In Stock: 6,812

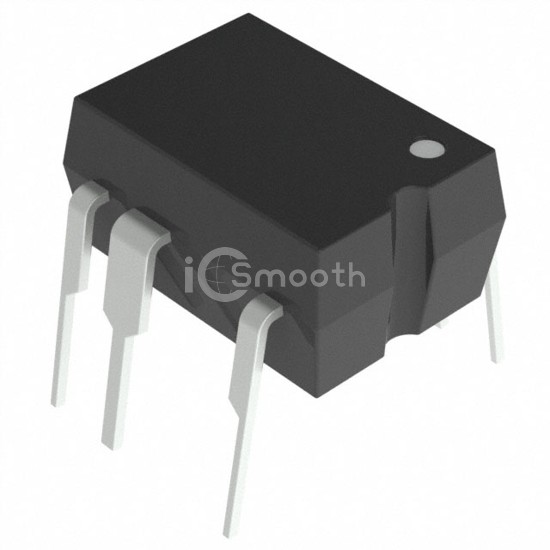

PR39MF22YSZF - Sharp Microelectronics - Optoisolators - Triac, SCR Output
REF: PR39MF22YSZF Sharp Microelectronics
PR39MF22YSZF

Sharp Microelectronics

OPTOISOLATOR 4KV PWR TRIAC 8DIP

PR39MF22YSZF is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 4KV PWR TRIAC 8DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Request a Quote

In Stock: 6,812

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac, Power
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation4000Vrms
Voltage - Off State600 V
Static dV/dt (Min)100V/µs
Current - LED Trigger (Ift) (Max)5mA
Current - On State (It (RMS)) (Max)900 mA
Current - Hold (Ih)25mA
Turn On Time50µs (Max)
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-30°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package8-DIP
Approval AgencyCSA, UR, VDE
