Name: PQ7RV4J0000H
Brand: Sharp Microelectronics
SKU: PQ7RV4J0000H
Availability: InStock

REF: PQ7RV4J0000H Sharp Microelectronics

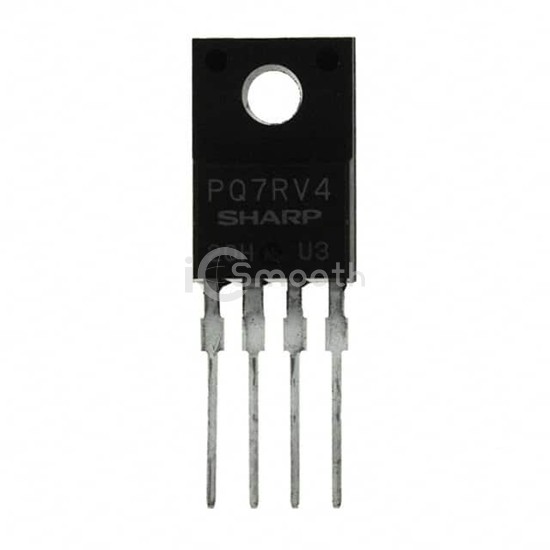

PQ7RV4J0000H

IC REG LIN POS ADJ 4.6A TO220-4

PQ7RV4J0000H is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LIN POS ADJ 4.6A TO220-4. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, package / case TO-220-4, current - output 4.6A.

Datasheet Request a Quote

In Stock: 6,135

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	7V
Voltage Dropout (Max)	1V @ 4.6A
Current - Output	4.6A

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	55dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	TO-220-4
Supplier Device Package	TO-220-4
