Name: PQ5EV7J0000H
Brand: Sharp Microelectronics
SKU: PQ5EV7J0000H
Availability: InStock

REF: PQ5EV7J0000H Sharp Microelectronics

PQ5EV7J0000H

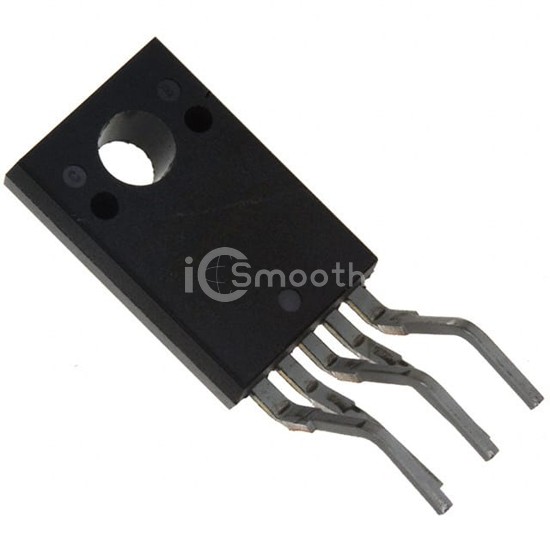

IC REG LIN POS ADJ 7.5A TO220-5

PQ5EV7J0000H is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LIN POS ADJ 7.5A TO220-5. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, package / case TO-220-5 Formed Leads, current - output 7.5A.

Datasheet Request a Quote

In Stock: 4,592

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.5V @ 7.5A
Current - Output	7.5A

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	70dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	TO-220-5 Formed Leads
Supplier Device Package	TO-220-5
