Name: PQ2L2182MSPQ
Brand: Sharp Microelectronics
SKU: PQ2L2182MSPQ
Availability: InStock

REF: PQ2L2182MSPQ Sharp Microelectronics

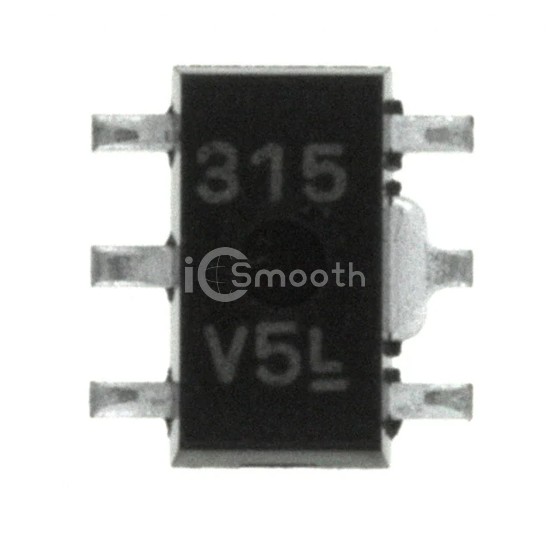

PQ2L2182MSPQ

IC REG LINEAR 1.8V/2.5V SOT89

PQ2L2182MSPQ is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 1.8V/2.5V SOT89. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 80°C, package / case TO-243AA, current - output 250mA, 250mA.

Datasheet Request a Quote

In Stock: 9,901

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	9V
Voltage - Output (Min/Fixed)	1.8V, 2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1V @ 200mA, 1V @ 200mA
Current - Output	250mA, 250mA

Current - Quiescent (Iq)	400 µA
Current - Supply (Max)	-
PSRR	60dB (400kHz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-30°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89
