Name: PQ2CF1J0000H
Brand: Sharp Microelectronics
SKU: PQ2CF1J0000H
Availability: InStock

REF: PQ2CF1J0000H Sharp Microelectronics

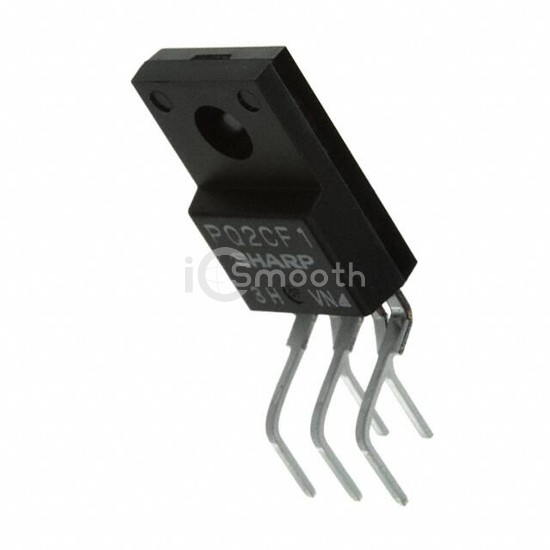

PQ2CF1J0000H

IC REG BST FLYBCK ADJ 2.5A TO220

PQ2CF1J0000H is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Sharp Microelectronics. IC REG BST FLYBCK ADJ 2.5A TO220. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C (TA), package / case TO-220-5 Formed Leads, current - output 2.5A (Switch).

Datasheet Request a Quote

In Stock: 4,325

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	4.5V

Voltage - Output (Max)	35V (Switch)
Current - Output	2.5A (Switch)
Frequency - Switching	50kHz
Synchronous Rectifier	No
Operating Temperature	-20°C ~ 80°C (TA)
Mounting Type	Through Hole
Package / Case	TO-220-5 Formed Leads
Supplier Device Package	TO-220
