Name: PQ20RX05
Brand: Sharp Microelectronics
SKU: PQ20RX05
Price: 0.74 USD
Availability: InStock

REF: PQ20RX05 Sharp Microelectronics

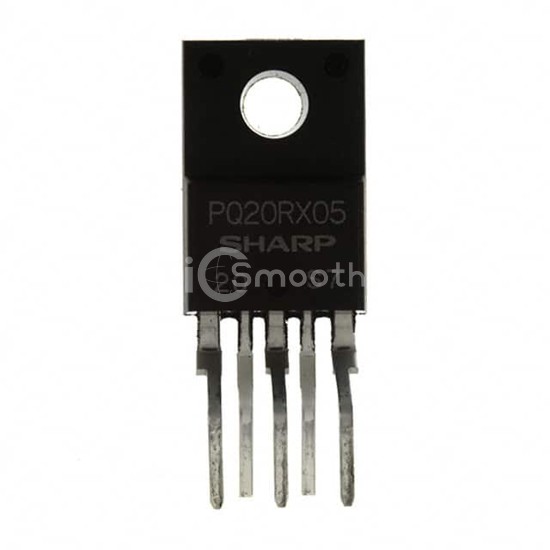

PQ20RX05

IC REG LIN POS ADJ 500MA TO220-5

PQ20RX05 is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LIN POS ADJ 500MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, package / case TO-220-5 Formed Leads, current - output 500mA.

Datasheet Request a Quote

In Stock: 9,308

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.5V @ 300mA
Current - Output	500mA

Current - Quiescent (Iq)	8 mA
Current - Supply (Max)	-
PSRR	45dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	TO-220-5 Formed Leads
Supplier Device Package	TO-220-5
