PQ1LA503MSPQ

In Stock: 5,293

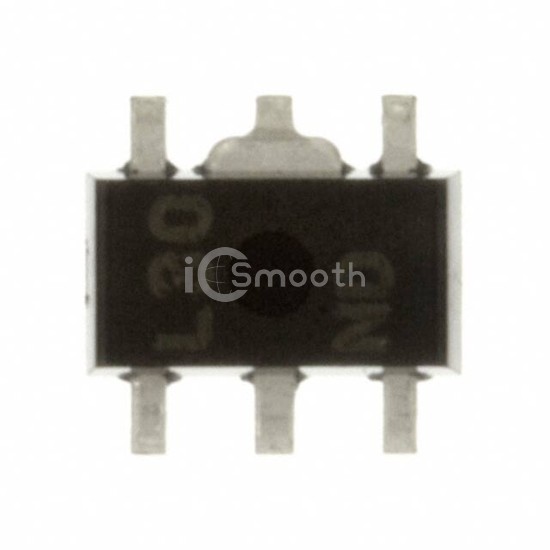

PQ1LA503MSPQ - Sharp Microelectronics - PMIC - Voltage Regulators - Linear
REF: PQ1LA503MSPQ Sharp Microelectronics
PQ1LA503MSPQ

Sharp Microelectronics

IC REG LINEAR 5V 300MA SOT89

PQ1LA503MSPQ is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 5V 300MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-89-5/6, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,293

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.7V @ 300mA
Current - Output300mA
Current - Quiescent (Iq)800 µA
Current - Supply (Max)-
PSRR55dB (400Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89
