Name: PQ1LA333MSPQ
Brand: Sharp Microelectronics
SKU: PQ1LA333MSPQ
Availability: InStock

REF: PQ1LA333MSPQ Sharp Microelectronics

PQ1LA333MSPQ

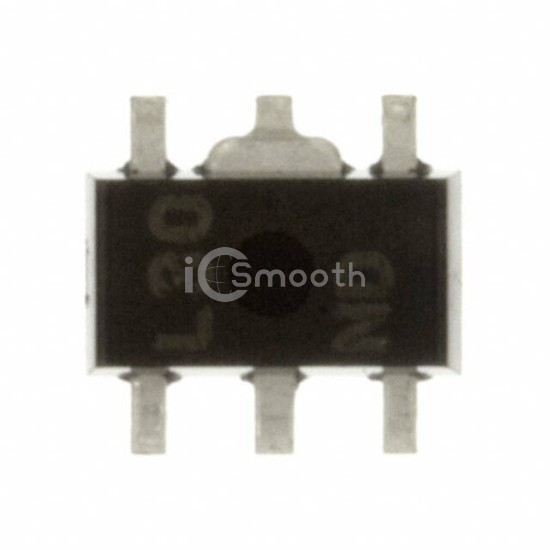

IC REG LINEAR 3.3V 300MA SOT89

PQ1LA333MSPQ is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 3.3V 300MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-89-5/6, current - output 300mA.

Datasheet Request a Quote

In Stock: 1,545

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.7V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	800 µA
Current - Supply (Max)	-
PSRR	55dB (400Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SOT-89-5/6
Supplier Device Package	SOT-89
