Name: PQ1L503M2SP
Brand: Sharp Microelectronics
SKU: PQ1L503M2SP
Price: 0.27 USD
Availability: InStock

REF: PQ1L503M2SP Sharp Microelectronics

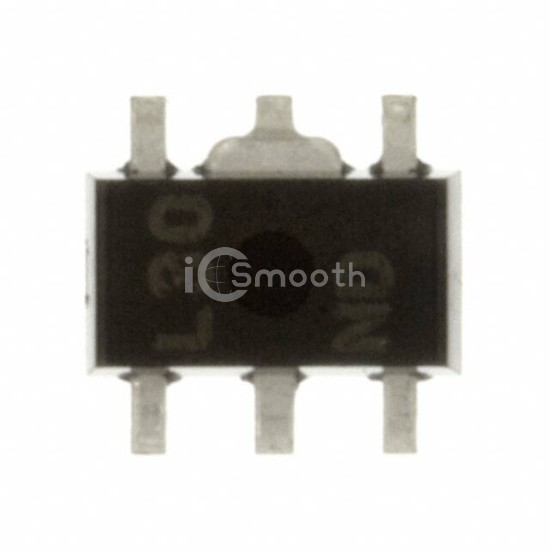

PQ1L503M2SP

Sharp Microelectronics

IC REG LINEAR 5V 300MA SOT89

PQ1L503M2SP is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 5V 300MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 80°C, package / case SOT-89-5/6, current - output 300mA.

Datasheet Request a Quote

In Stock: 1,409

Tiered Pricing USD

1,000+ $0.2712 —

2,000+ $0.2457 -9%

3,000+ $0.2327 -14%

5,000+ $0.2181 -20%

7,000+ $0.2096 -23%

10,000+ $0.2012 -26%

25,000+ $0.1875 -31% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.7V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	500 µA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-30°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	SOT-89-5/6
Supplier Device Package	SOT-89
