Name: PQ1CZ38M2ZZH
Brand: Sharp Microelectronics
SKU: PQ1CZ38M2ZZH
Availability: InStock

REF: PQ1CZ38M2ZZH Sharp Microelectronics

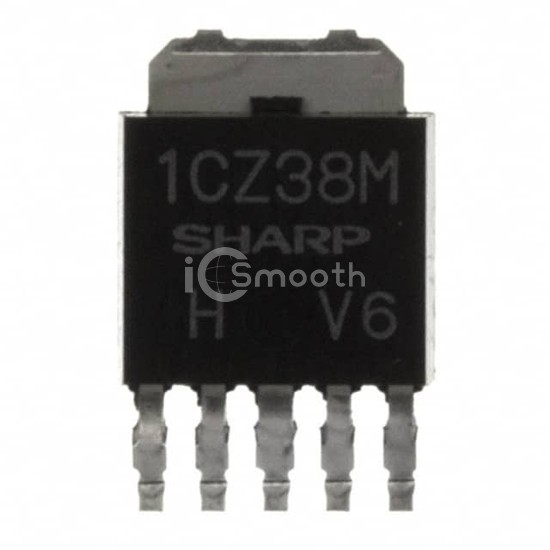

PQ1CZ38M2ZZH

IC REG BUCK ADJ 800MA SC63

PQ1CZ38M2ZZH is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Sharp Microelectronics. IC REG BUCK ADJ 800MA SC63. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 80°C (TA), package / case TO-252-6, DPak (5 Leads + Tab), current - output 800mA.

Datasheet Request a Quote

In Stock: 1,268

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive or Negative
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	±1.26V

Voltage - Output (Max)	35V, -30V
Current - Output	800mA
Frequency - Switching	300kHz
Synchronous Rectifier	No
Operating Temperature	-20°C ~ 80°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	SC-63
