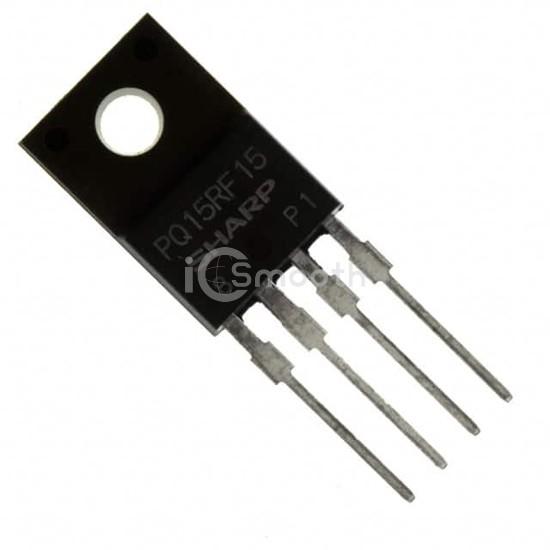

Name: PQ15RF15
Brand: Sharp Microelectronics
SKU: PQ15RF15
Availability: InStock

REF: PQ15RF15 Sharp Microelectronics

PQ15RF15

IC REG LINEAR 15.7V 1A TO220-4

PQ15RF15 is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 15.7V 1A TO220-4. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, package / case TO-220-4, current - output 1A.

Datasheet Request a Quote

In Stock: 9,595

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	15.7V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5A @ 500mA
Current - Output	1A

Current - Quiescent (Iq)	20 µA
Current - Supply (Max)	-
PSRR	65dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	TO-220-4
Supplier Device Package	TO-220-4
