Name: PQ12RD08J00H
Brand: Sharp Microelectronics
SKU: PQ12RD08J00H
Availability: InStock

REF: PQ12RD08J00H Sharp Microelectronics

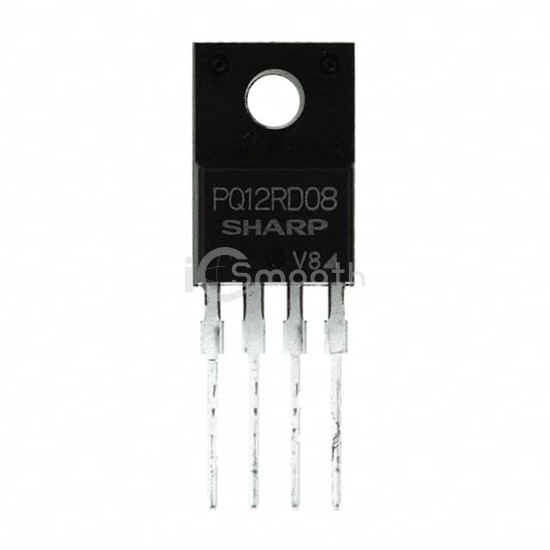

PQ12RD08J00H

IC REG LINEAR 12V 800MA TO220-4

PQ12RD08J00H is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 12V 800MA TO220-4. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, package / case TO-220-4, current - output 800mA.

Datasheet Request a Quote

In Stock: 9,293

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	800mA

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	55dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	TO-220-4
Supplier Device Package	TO-220-4
