Name: PQ12DZ11J00H
Brand: Sharp Microelectronics
SKU: PQ12DZ11J00H
Availability: InStock

REF: PQ12DZ11J00H Sharp Microelectronics

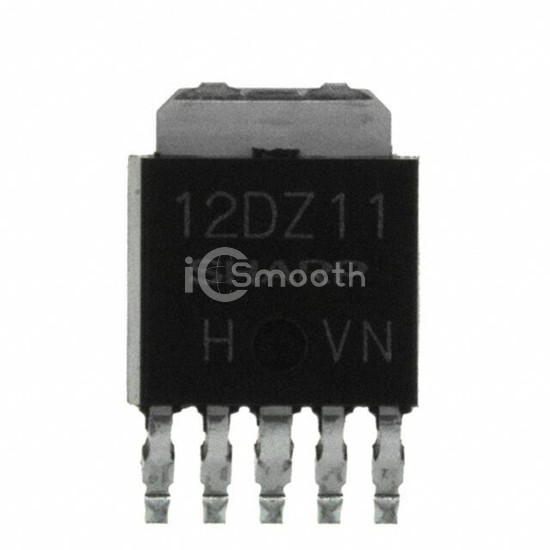

PQ12DZ11J00H

IC REG LINEAR 12V 1A SC63

PQ12DZ11J00H is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR 12V 1A SC63. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 80°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 1A.

Datasheet Request a Quote

In Stock: 5,800

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	1A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	SC-63
