Name: PQ07VZ012ZPH
Brand: Sharp Microelectronics
SKU: PQ07VZ012ZPH
Availability: InStock

REF: PQ07VZ012ZPH Sharp Microelectronics

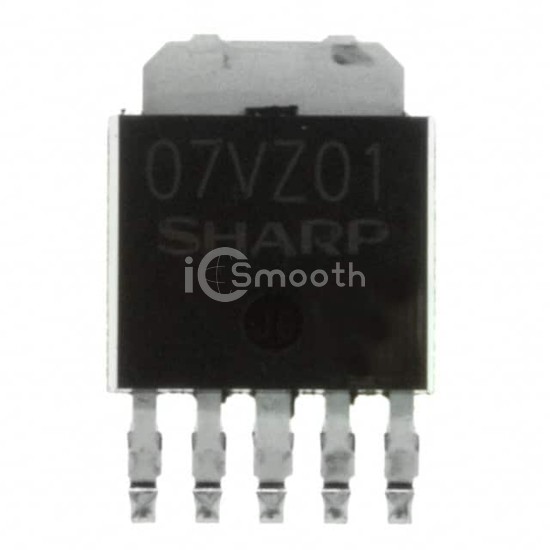

PQ07VZ012ZPH

IC REG LINEAR POS ADJ 1A SC63

PQ07VZ012ZPH is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR POS ADJ 1A SC63. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 1A.

Datasheet Request a Quote

In Stock: 2,624

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	7V
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	1A

Current - Quiescent (Iq)	7 mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	SC-63
