Name: PQ05VY053ZPH
Brand: Sharp Microelectronics
SKU: PQ05VY053ZPH
Availability: InStock

REF: PQ05VY053ZPH Sharp Microelectronics

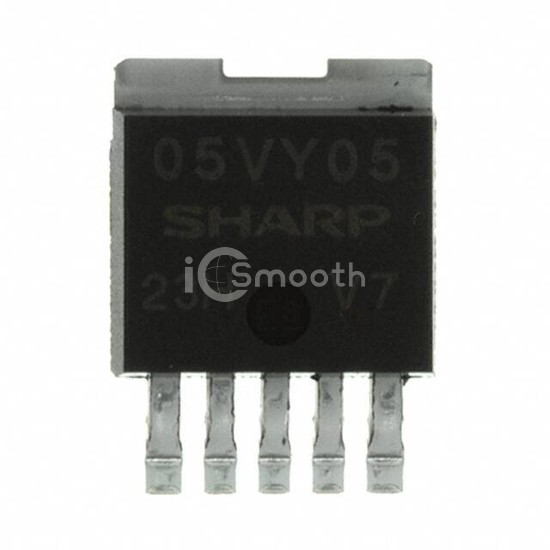

PQ05VY053ZPH

IC REG LINEAR POS ADJ 5A TO263

PQ05VY053ZPH is a PMIC - Voltage Regulators - Linear manufactured by Sharp Microelectronics. IC REG LINEAR POS ADJ 5A TO263. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 80°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 5A.

Datasheet Request a Quote

In Stock: 7,776

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.5V @ 5A
Current - Output	5A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	70dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263
