Name: PC929J00000F
Brand: Sharp Microelectronics
SKU: PC929J00000F
Availability: InStock

REF: PC929J00000F Sharp Microelectronics

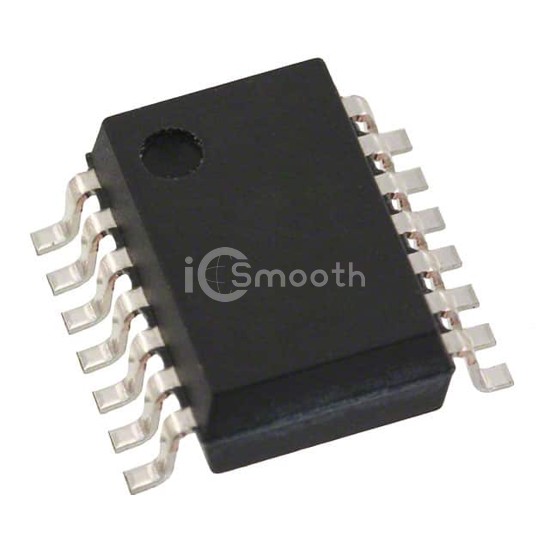

PC929J00000F

OPTOISO 4KV 1CH GATE DRVR 14SMT

PC929J00000F is a Isolators - Gate Drivers manufactured by Sharp Microelectronics. OPTOISO 4KV 1CH GATE DRVR 14SMT. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 80°C, voltage - forward (vf) (typ) 1.6V, package / case 14-SOIC (0.256", 6.50mm Width).

Datasheet Request a Quote

In Stock: 5,101

Specifications

18 parameters

Product Status	Obsolete
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	4000Vrms
Common Mode Transient Immunity (Min)	1.5kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	200ns, 200ns
Current - Output High, Low	-

Current - Peak Output	400mA
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-25°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.256", 6.50mm Width)
Supplier Device Package	14-SMT
Approval Agency	UR
