Name: PC852XPJ000F
Brand: Sharp Microelectronics
SKU: PC852XPJ000F
Price: 0.33 USD
Availability: InStock

REF: PC852XPJ000F Sharp Microelectronics

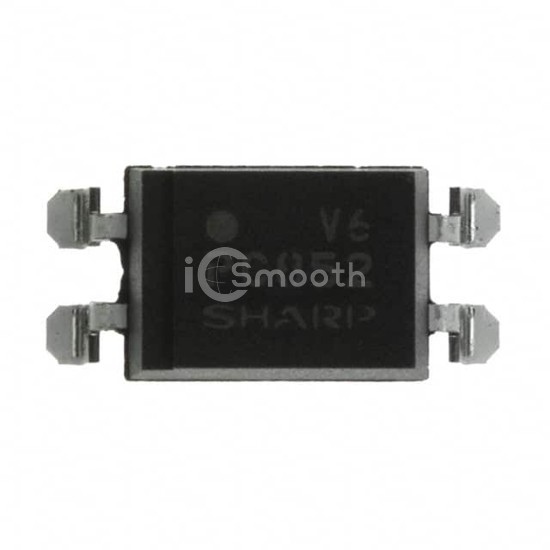

PC852XPJ000F

Sharp Microelectronics

OPTOISOLATOR 5KV DARL 4SMD

PC852XPJ000F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 5KV DARL 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,986

Tiered Pricing USD

8,000+ $0.3265 —

10,000+ $0.3222 -1%

14,000+ $0.3162 -3%

20,000+ $0.3104 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 20µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	350V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
