Name: PC851XJ0000F
Brand: Sharp Microelectronics
SKU: PC851XJ0000F
Price: 0.32 USD
Availability: InStock

REF: PC851XJ0000F Sharp Microelectronics

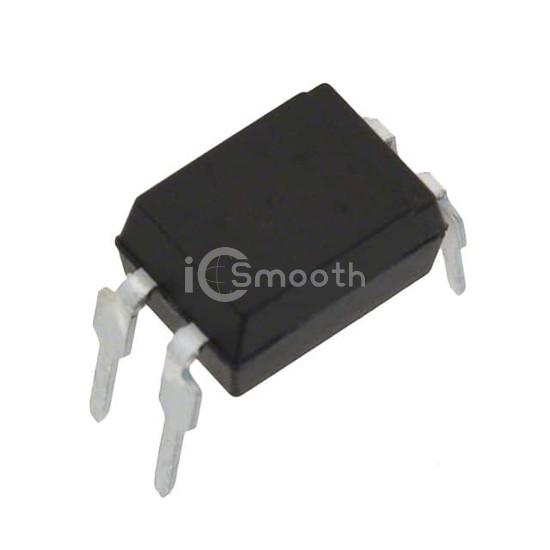

PC851XJ0000F

Sharp Microelectronics

OPTOISOLATOR 5KV TRANS 4DIP

PC851XJ0000F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 5KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,691

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	350V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-25°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
