Name: PC845XJ0000F
Brand: Sharp Microelectronics
SKU: PC845XJ0000F
Availability: InStock

REF: PC845XJ0000F Sharp Microelectronics

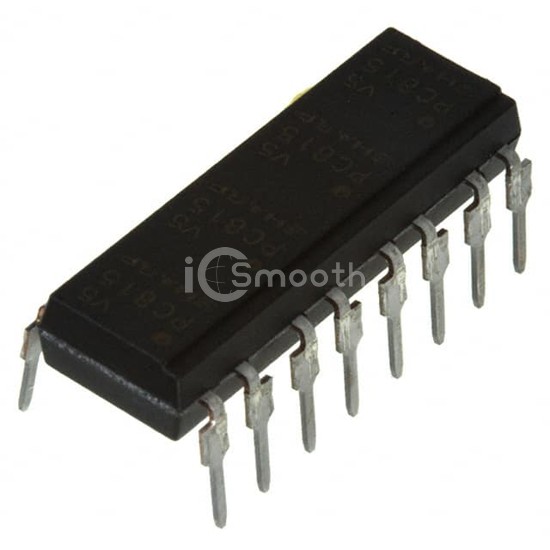

PC845XJ0000F

OPTOISO 5KV 4CH DARLINGTON 16DIP

PC845XJ0000F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISO 5KV 4CH DARLINGTON 16DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,987

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	4
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
