Name: PC844X
Brand: Sharp Microelectronics
SKU: PC844X
Price: 0.85 USD
Availability: InStock

REF: PC844X Sharp Microelectronics

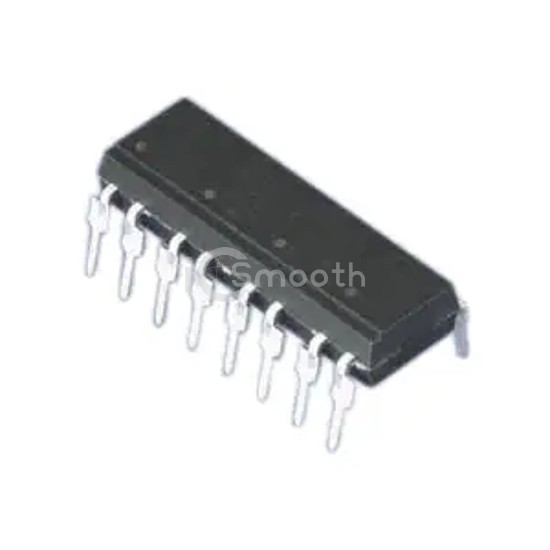

PC844X

OPTOISOLTR 5KV 4CH TRANS 16-DIP

PC844X is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLTR 5KV 4CH TRANS 16-DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,709

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	4
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
