Name: PC733
Brand: Sharp Microelectronics
SKU: PC733
Price: 0.79 USD
Availability: InStock

REF: PC733 Sharp Microelectronics

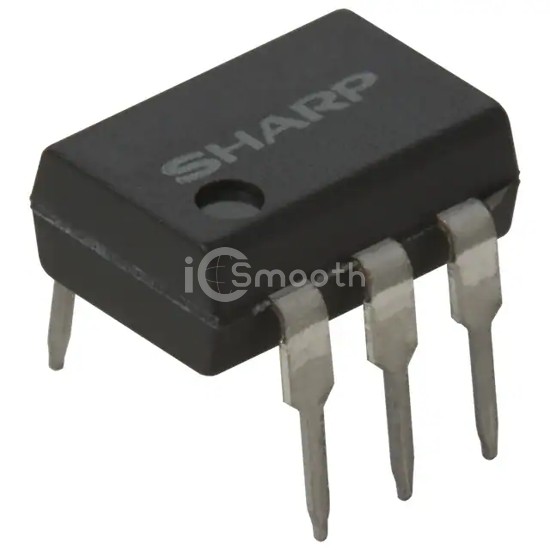

PC733

OPTOISO 5KV TRANS W/BASE 6DIP

PC733 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,101

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	15% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor with Base

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-25°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
