Name: PC725V0NIZXF
Brand: Sharp Microelectronics
SKU: PC725V0NIZXF
Availability: InStock

REF: PC725V0NIZXF Sharp Microelectronics

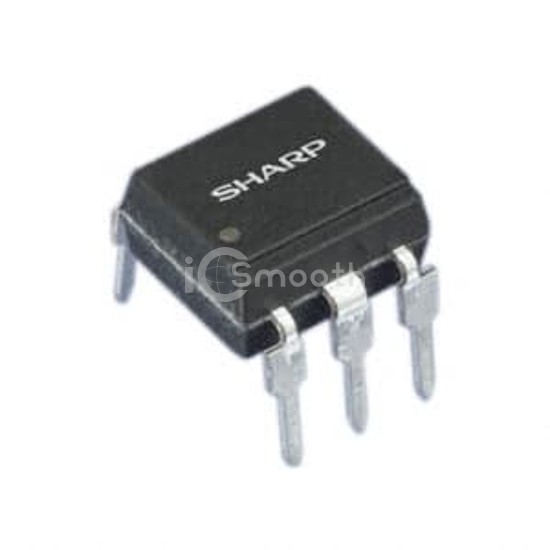

PC725V0NIZXF

OPTOISO 5KV DARL W/BASE 6SMD

PC725V0NIZXF is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISO 5KV DARL W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,756

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	15000% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 20µs
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	300V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-25°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
