Name: PC724V0NIPXF
Brand: Sharp Microelectronics
SKU: PC724V0NIPXF
Availability: InStock

REF: PC724V0NIPXF Sharp Microelectronics

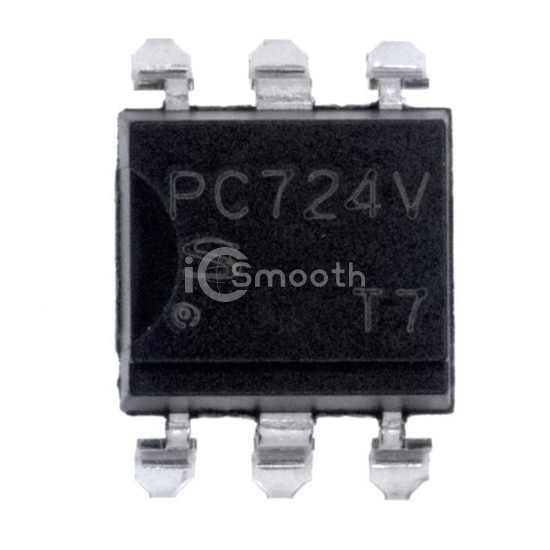

PC724V0NIPXF

OPTOISOLATR 5KV TRANSISTOR 6-SMD

PC724V0NIPXF is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATR 5KV TRANSISTOR 6-SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,680

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 100mA
Current Transfer Ratio (Max)	80% @ 100mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	150 mA
Vce Saturation (Max)	200mV
Operating Temperature	-25°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
