Name: PC512
Brand: Sharp Microelectronics
SKU: PC512
Availability: InStock

REF: PC512 Sharp Microelectronics

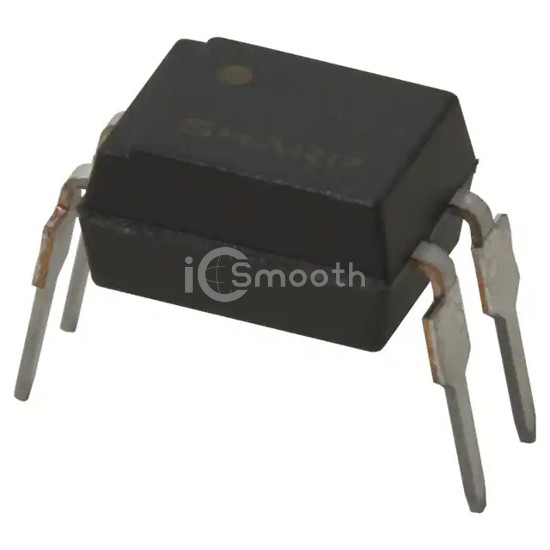

PC512

OPTOISOLATOR 5KV TRANS MODULE

PC512 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 5KV TRANS MODULE. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP Module.

Datasheet Request a Quote

In Stock: 4,632

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	20mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	4-DIP Module
Supplier Device Package	4-DIP
