PC4H520NIP0F

In Stock: 9,922
PC4H520NIP0F - Sharp Microelectronics - Optoisolators - Transistor, Photovoltaic Output
REF: PC4H520NIP0F Sharp Microelectronics

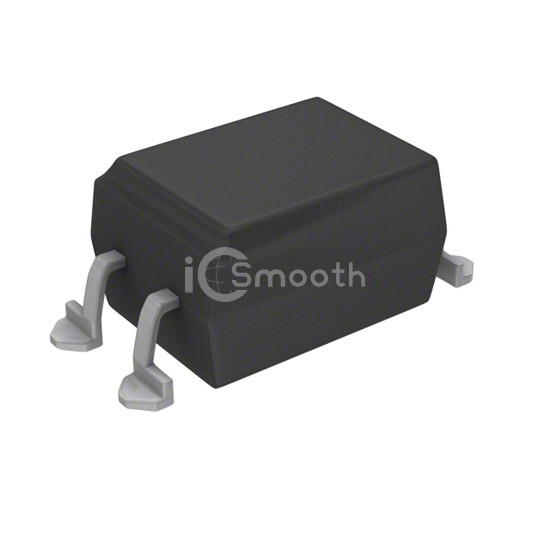

PC4H520NIP0F

Sharp Microelectronics

OPTOISOLATOR 2.5KV DARL 4SMD

PC4H520NIP0F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 2.5KV DARL 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 9,922

Tiered Pricing USD
3,000+ $0.3493 —
6,000+ $0.3414 -2%
15,000+ $0.3335 -5%
30,000+ $0.3283 -6% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)100µs, 20µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)350V
Current - Output / Channel120mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1.4V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.173", 4.40mm Width)
Supplier Device Package4-Mini-Flat
