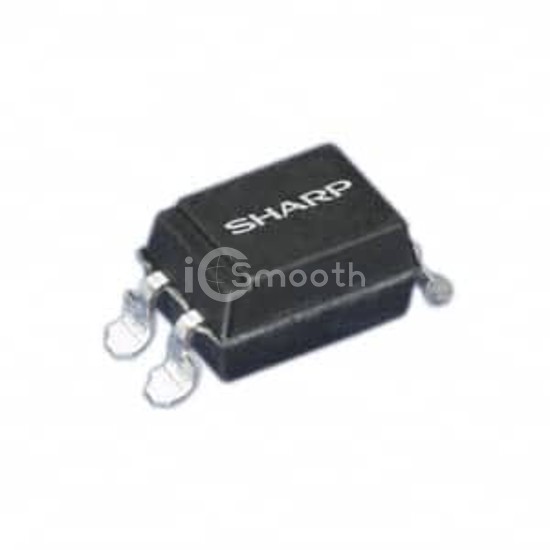

Name: PC4H510NIP
Brand: Sharp Microelectronics
SKU: PC4H510NIP
Price: 0.34 USD
Availability: InStock

REF: PC4H510NIP Sharp Microelectronics

PC4H510NIP

Sharp Microelectronics

OPTOISOLATOR 2.5KV TRANS 4SMD

PC4H510NIP is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 2.5KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,055

Tiered Pricing USD

3,000+ $0.3358 —

6,000+ $0.3197 -5%

9,000+ $0.3116 -7%

15,000+ $0.3028 -10%

21,000+ $0.2976 -11%

30,000+ $0.2926 -13% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	40% @ 5mA
Current Transfer Ratio (Max)	240% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	350V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-25°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SOIC (0.209", 5.30mm Width)
Supplier Device Package	4-SOP
