Name: PC452
Brand: Sharp Microelectronics
SKU: PC452
Price: 0.54 USD
Availability: InStock

REF: PC452 Sharp Microelectronics

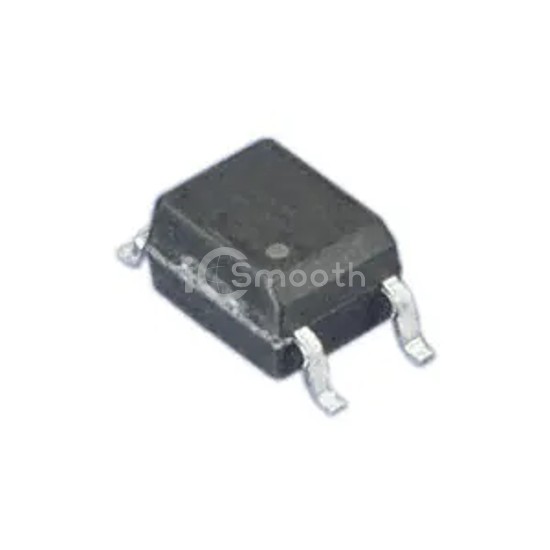

PC452

OPTOISOLATOR 3.75KV DARL 4SMD

PC452 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 3.75KV DARL 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,531

Tiered Pricing USD

3,000+ $0.5429 —

6,000+ $0.5203 -4%

9,000+ $0.5090 -6%

15,000+ $0.4966 -9% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 20µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	350V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
