Name: PC451
Brand: Sharp Microelectronics
SKU: PC451
Price: 0.47 USD
Availability: InStock

REF: PC451 Sharp Microelectronics

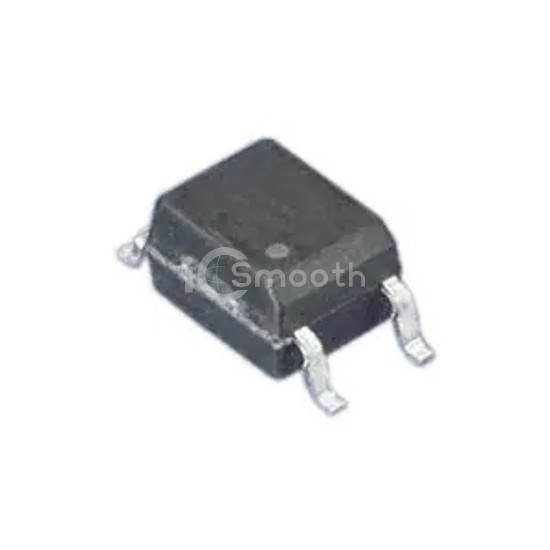

PC451

OPTOISOLATOR 3.75KV TRANS 4SMD

PC451 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATOR 3.75KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,276

Tiered Pricing USD

3,000+ $0.4660 —

6,000+ $0.4457 -4%

9,000+ $0.4356 -7%

15,000+ $0.4244 -9%

21,000+ $0.4179 -10% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	40% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	350V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-25°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
