PC3SD11NXZB

In Stock: 9,436

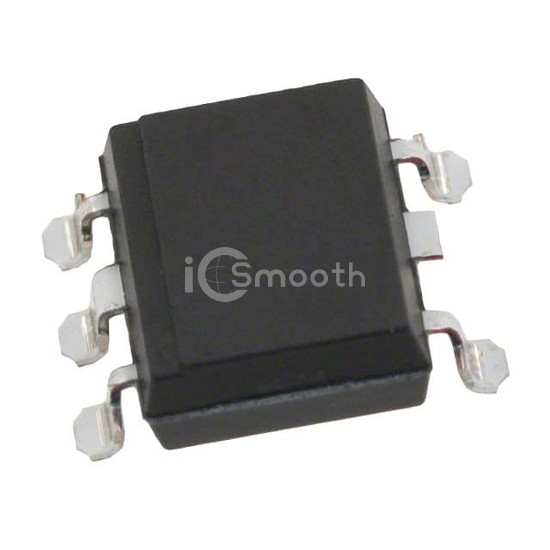

PC3SD11NXZB - Sharp Microelectronics - Optoisolators - Triac, SCR Output
REF: PC3SD11NXZB Sharp Microelectronics
PC3SD11NXZB

Sharp Microelectronics

OPTOISOLATOR 5KV TRIAC 6SMD

PC3SD11NXZB is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD.

Datasheet Request a Quote

In Stock: 9,436

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)1kV/µs
Current - LED Trigger (Ift) (Max)7mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD
Supplier Device Package6-SMD
Approval AgencyCSA, UR
