Name: PC364N
Brand: Sharp Microelectronics
SKU: PC364N
Price: 0.34 USD
Availability: InStock

REF: PC364N Sharp Microelectronics

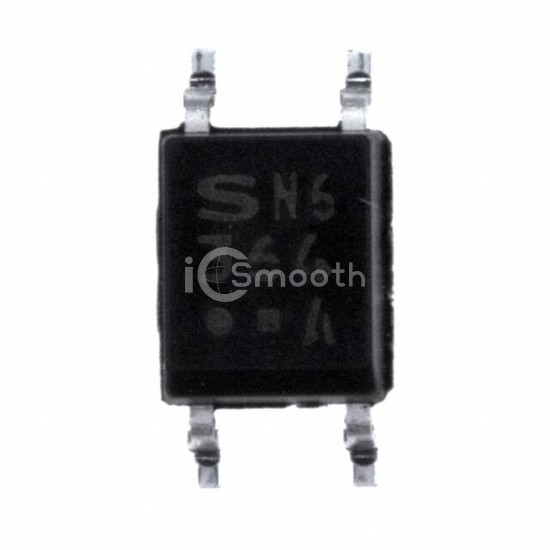

PC364N

OPTOISO 3.75KV TRANS 4-MINI-FLAT

PC364N is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISO 3.75KV TRANS 4-MINI-FLAT. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,706

Tiered Pricing USD

3,000+ $0.3358 —

6,000+ $0.3197 -5%

9,000+ $0.3116 -7%

15,000+ $0.3028 -10%

21,000+ $0.2976 -11%

30,000+ $0.2926 -13% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 500µA
Current Transfer Ratio (Max)	400% @ 500µA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
