Name: PC355NTJ000F
Brand: Sharp Microelectronics
SKU: PC355NTJ000F
Price: 0.40 USD
Availability: InStock

REF: PC355NTJ000F Sharp Microelectronics

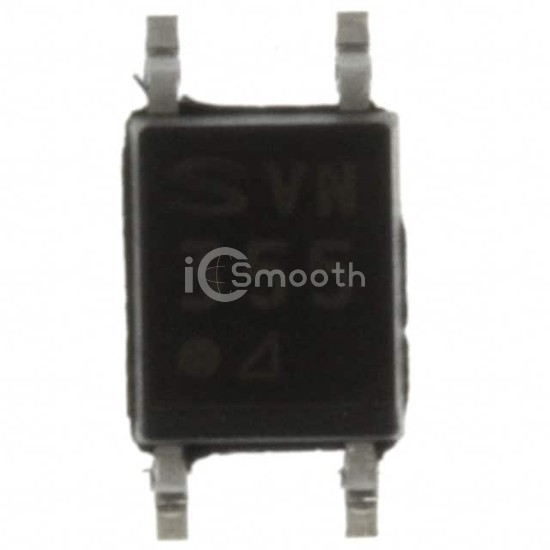

PC355NTJ000F

Sharp Microelectronics

OPTOISO 3.75KV DARL 4-MINI-FLAT

PC355NTJ000F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISO 3.75KV DARL 4-MINI-FLAT. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,371

Tiered Pricing USD

3,000+ $0.4013 —

3,750+ $0.3950 -2%

5,250+ $0.3863 -4%

7,500+ $0.3779 -6%

18,750+ $0.3599 -10% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
