Name: PC123ZY2J00F
Brand: Sharp Microelectronics
SKU: PC123ZY2J00F
Price: 0.23 USD
Availability: InStock

REF: PC123ZY2J00F Sharp Microelectronics

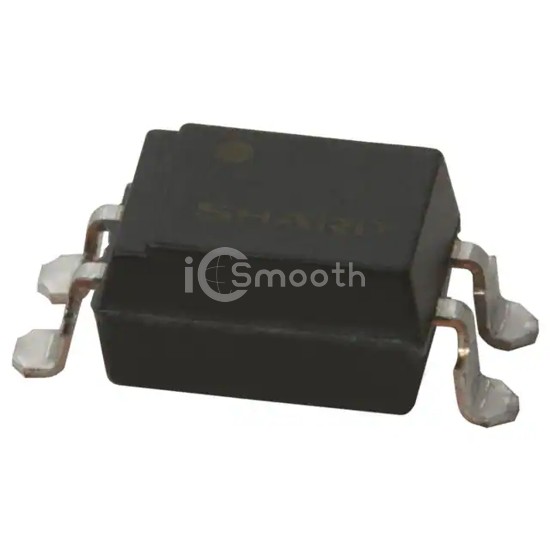

PC123ZY2J00F

Sharp Microelectronics

OPTOISOLATR 5KV TRANSISTOR 4-SMD

PC123ZY2J00F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Sharp Microelectronics. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,982

Tiered Pricing USD

8,000+ $0.2250 —

10,000+ $0.2217 -1%

14,000+ $0.2171 -4%

20,000+ $0.2126 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	250% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
