SX1236IMLTRT

In Stock: 2,074

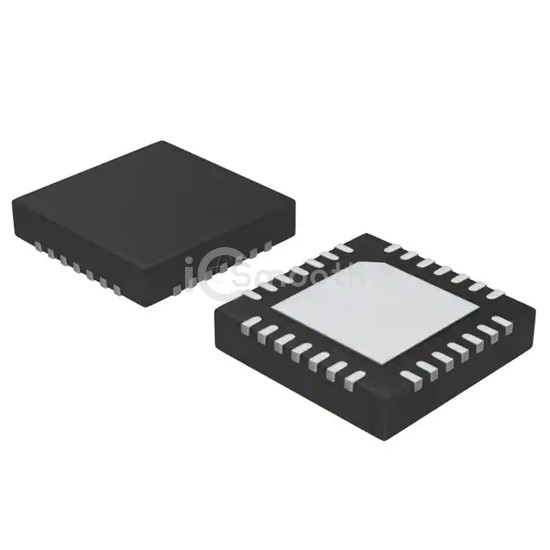

SX1236IMLTRT - Semtech Corporation - RF Transceiver ICs
REF: SX1236IMLTRT Semtech Corporation
SX1236IMLTRT

Semtech Corporation

IC RF TXRX ISM<1GHZ 28VQFN

SX1236IMLTRT is a RF Transceiver ICs manufactured by Semtech Corporation. IC RF TXRX ISM<1GHZ 28VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.7V, package / case 28-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,074

Tiered Pricing USD
1+ $6.4100 —
10+ $5.5540 -13%
25+ $5.2556 -18%
100+ $4.8460 -24%
250+ $4.6006 -28%
500+ $4.4274 -31%
1,000+ $4.2642 -33% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx Only
RF Family/StandardGeneral ISM < 1GHz
Protocol-
ModulationFSK, GFSK, GMSK, MSK, OOK
Frequency137MHz ~ 1.02GHz
Data Rate (Max)300kbps
Power - Output20dBm
Sensitivity-123dBm
Memory Size-
Serial InterfacesSPI
GPIO6
Voltage - Supply1.8V ~ 3.7V
Current - Receiving10.8mA ~ 12mA
Current - Transmitting20mA ~ 120mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case28-VQFN Exposed Pad
Supplier Device Package28-QFN (6x6)
