Name: SD05.TCT
Brand: Semtech Corporation
SKU: SD05.TCT
Price: 1.09 USD
Availability: InStock

REF: SD05.TCT Semtech Corporation

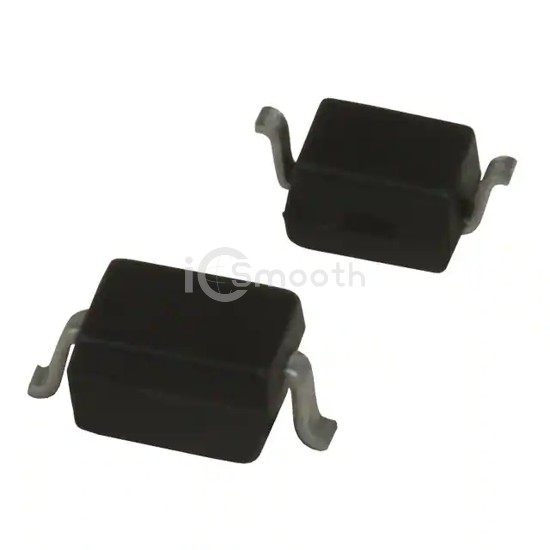

SD05.TCT

TVS DIODE 5VWM 14.5VC SOD323

SD05.TCT is a TVS - Diodes manufactured by Semtech Corporation. TVS DIODE 5VWM 14.5VC SOD323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 8,768

Tiered Pricing USD

1+ $1.0900 —

10+ $0.6790 -38%

100+ $0.4448 -59%

500+ $0.3440 -68%

1,000+ $0.3115 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	14.5V
Current - Peak Pulse (10/1000µs)	24A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	350pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
