Name: RCLAMP1255P.TGT
Brand: Semtech Corporation
SKU: RCLAMP1255P.TGT
Price: 1.82 USD
Availability: InStock

REF: RCLAMP1255P.TGT Semtech Corporation

RCLAMP1255P.TGT

Semtech Corporation

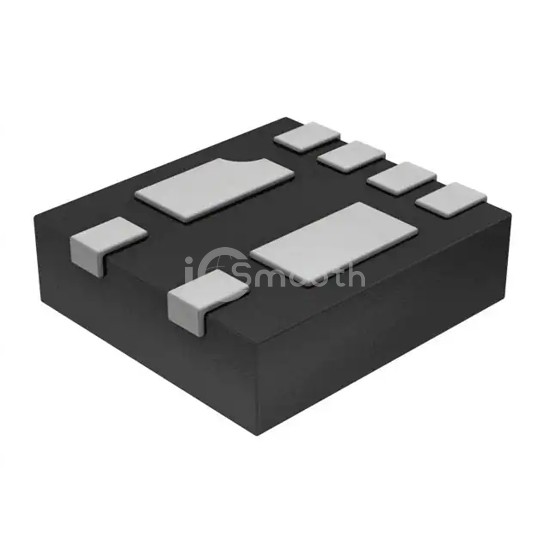

TVS DIODE 4VWM 12.5VC SLP2018P6

RCLAMP1255P.TGT is a TVS - Diodes manufactured by Semtech Corporation. TVS DIODE 4VWM 12.5VC SLP2018P6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,704

Tiered Pricing USD

1+ $1.8200 —

10+ $1.1600 -36%

100+ $0.7798 -57%

500+ $0.6168 -66%

1,000+ $0.5661 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	4V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	12.5V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	40W
Power Line Protection	Yes
Applications	USB OTG
Capacitance @ Frequency	0.35pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	SLP2018P6
