Name: RCLAMP0561Z.TNT
Brand: Semtech Corporation
SKU: RCLAMP0561Z.TNT
Price: 0.17 USD
Availability: InStock

REF: RCLAMP0561Z.TNT Semtech Corporation

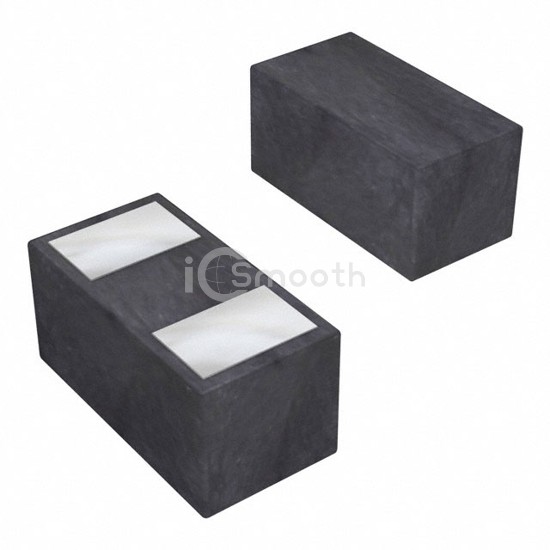

RCLAMP0561Z.TNT

Semtech Corporation

TVS DIODE 5.5VWM 20V SGP0603P2X3

RCLAMP0561Z.TNT is a TVS - Diodes manufactured by Semtech Corporation. TVS DIODE 5.5VWM 20V SGP0603P2X3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 2-XFDFN.

Datasheet Request a Quote

In Stock: 2,377

Tiered Pricing USD

10,000+ $0.1656 —

20,000+ $0.1625 -2% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	20V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	40W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.12pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-XFDFN
Supplier Device Package	SGP0603P2X3
