1N4472US

In Stock: 45

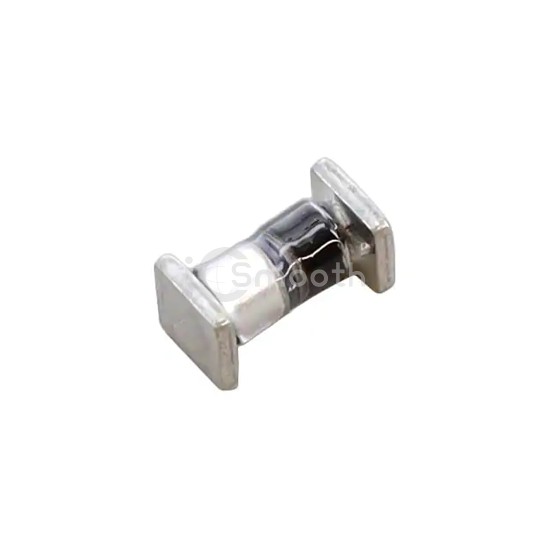

1N4472US - Semtech Corporation - Diodes - Zener - Single
REF: 1N4472US Semtech Corporation
1N4472US

Semtech Corporation

DIODE ZENER 20V 1.5W

1N4472US is a Diodes - Zener - Single manufactured by Semtech Corporation. DIODE ZENER 20V 1.5W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C, package / case SQ-MELF, power - max 1.5 W.

Datasheet Request a Quote

In Stock: 45

Specifications

11 parameters
Product StatusDiscontinued at Digi-Key
Voltage - Zener (Nom) (Vz)20 V
Tolerance±5%
Power - Max1.5 W
Impedance (Max) (Zzt)12 Ohms
Current - Reverse Leakage @ Vr50 nA @ 16 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseSQ-MELF
Supplier Device Package-
