2SD1685G

In Stock: 2,119

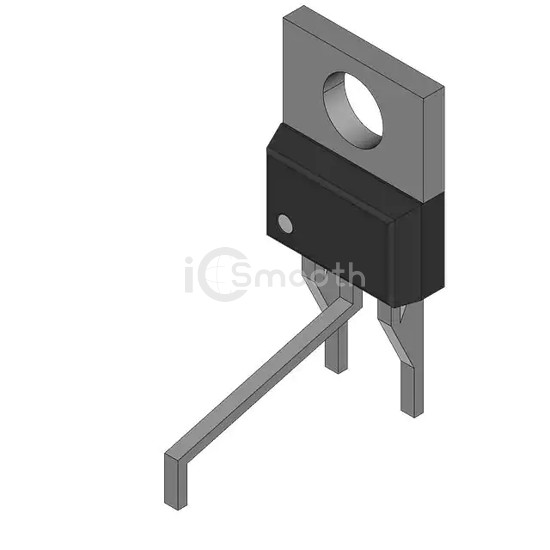

2SD1685G - Sanyo - Transistors - Bipolar (BJT) - Single
REF: 2SD1685G Sanyo
2SD1685G

Sanyo

TRANS NPN 20V 5A TO225-3

2SD1685G is a Transistors - Bipolar (BJT) - Single manufactured by Sanyo. TRANS NPN 20V 5A TO225-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 2,119

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 60mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 500mA, 2V
Power - Max1.5 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-225-3
