2SA1770S-AN

In Stock: 1,841

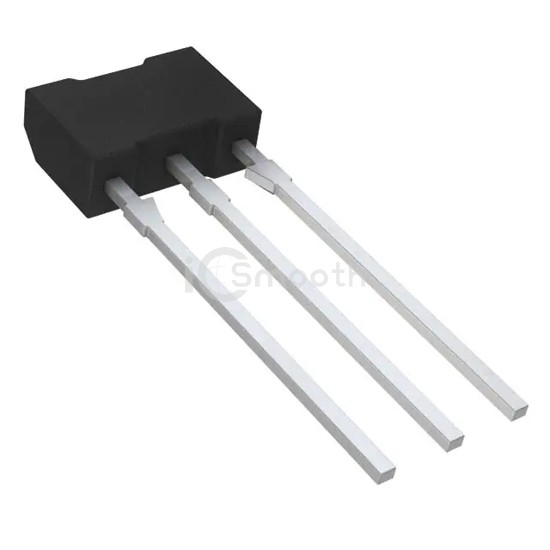

2SA1770S-AN - Sanyo - Transistors - Bipolar (BJT) - Single
REF: 2SA1770S-AN Sanyo
2SA1770S-AN

Sanyo

TRANS PNP 160V 1.5A 3NMP

2SA1770S-AN is a Transistors - Bipolar (BJT) - Single manufactured by Sanyo. TRANS PNP 160V 1.5A 3NMP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case SC-71, current - collector (ic) (max) 1.5 A.

Datasheet Request a Quote

In Stock: 1,841

Specifications

13 parameters
Product StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)160 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 100mA, 5V
Power - Max1 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseSC-71
Supplier Device Package3-NMP
