Name: STR6A169HVD
Brand: Sanken
SKU: STR6A169HVD
Price: 3.14 USD
Availability: InStock

REF: STR6A169HVD Sanken

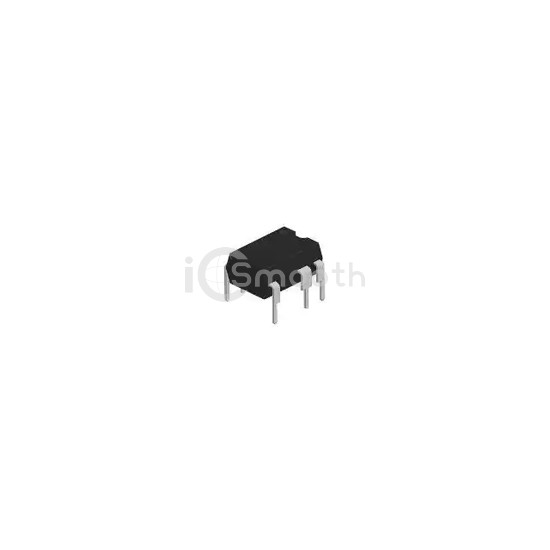

STR6A169HVD

AC/DC CONVERTER IC (INTEGRATED M

STR6A169HVD is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. AC/DC CONVERTER IC (INTEGRATED M. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 32V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 50

Tiered Pricing USD

1+ $3.1400 —

50+ $1.5666 -50%

100+ $1.4138 -55%

500+ $1.1460 -64%

1,000+ $1.0600 -66%

2,000+ $0.9877 -69%

5,000+ $0.9750 -69% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	700V
Topology	Flyback
Voltage - Start Up	15 V
Voltage - Supply (Vcc/Vdd)	8.5V ~ 32V
Duty Cycle	75%

Frequency - Switching	100kHz
Power (Watts)	30 W
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features	Frequency Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TA)
Package / Case	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package	8-DIP
Mounting Type	Through Hole
