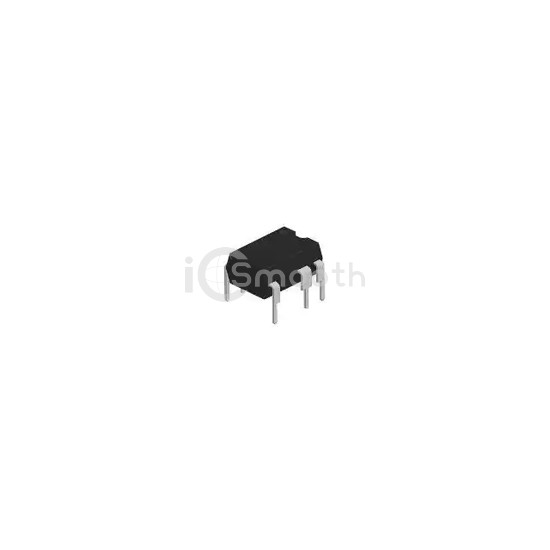

STR6A168HV

In Stock: 50
STR6A168HV - Sanken - PMIC - AC DC Converters, Offline Switchers
REF: STR6A168HV Sanken
STR6A168HV

Sanken

AC/DC CONVERTER IC (INTEGRATED M

STR6A168HV is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. AC/DC CONVERTER IC (INTEGRATED M. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 32V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 50

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up15 V
Voltage - Supply (Vcc/Vdd)8.5V ~ 32V
Duty Cycle75%
Frequency - Switching100kHz
Power (Watts)24 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control FeaturesFrequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TA)
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package8-DIP
Mounting TypeThrough Hole
