STR-Y6735

In Stock: 4,496

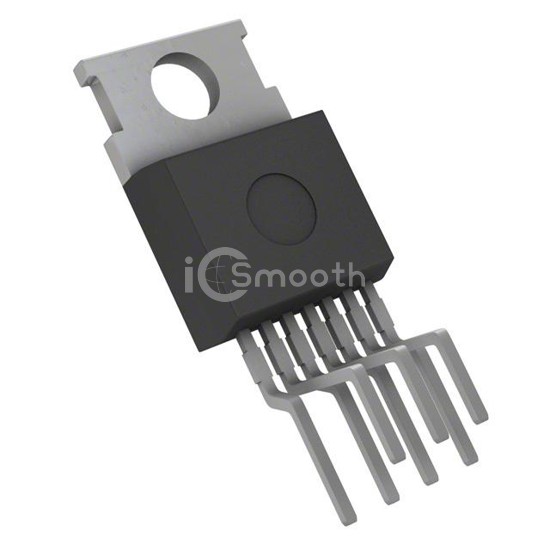

STR-Y6735 - Sanken - PMIC - AC DC Converters, Offline Switchers
REF: STR-Y6735 Sanken
STR-Y6735

Sanken

IC OFFLINE SW FLYBACK TO220F-7

STR-Y6735 is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. IC OFFLINE SW FLYBACK TO220F-7. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 115°C (TA), voltage - supply (vcc/vdd) 9.4V ~ 35V, package / case TO-220-7 Formed Leads.

Datasheet Request a Quote

In Stock: 4,496

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown500V
TopologyFlyback
Voltage - Start Up15.1 V
Voltage - Supply (Vcc/Vdd)9.4V ~ 35V
Duty Cycle-
Frequency - Switching18.4kHz ~ 24.4kHz
Power (Watts)120 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-20°C ~ 115°C (TA)
Package / CaseTO-220-7 Formed Leads
Supplier Device PackageTO-220F-7
Mounting TypeThrough Hole
