STR-X6769

In Stock: 5,203

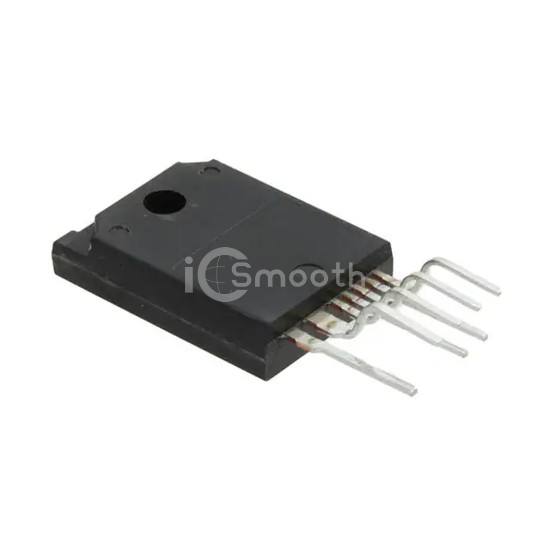

STR-X6769 - Sanken - PMIC - AC DC Converters, Offline Switchers
REF: STR-X6769 Sanken
STR-X6769

Sanken

IC OFFLINE SW FLYBACK TO3PF-7

STR-X6769 is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. IC OFFLINE SW FLYBACK TO3PF-7. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 125°C (TA), voltage - supply (vcc/vdd) 9.7V ~ 35V, package / case TO-3P-7 Full Pack, Formed Leads.

Datasheet Request a Quote

In Stock: 5,203

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown800V
TopologyFlyback
Voltage - Start Up18.2 V
Voltage - Supply (Vcc/Vdd)9.7V ~ 35V
Duty Cycle-
Frequency - Switching19kHz ~ 25kHz
Power (Watts)310 W
Fault ProtectionCurrent Limiting, Over Load, Over Voltage
Control FeaturesSoft Start
Operating Temperature-20°C ~ 125°C (TA)
Package / CaseTO-3P-7 Full Pack, Formed Leads
Supplier Device PackageTO-3P
Mounting TypeThrough Hole
