STR-W6735N

In Stock: 7,789

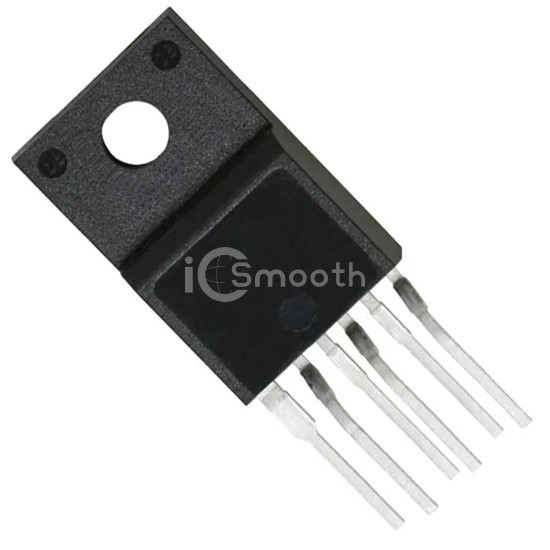

STR-W6735N - Sanken - PMIC - AC DC Converters, Offline Switchers
REF: STR-W6735N Sanken
STR-W6735N

Sanken

IC OFFLINE SW FLBACK TO220F-6L

STR-W6735N is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. IC OFFLINE SW FLBACK TO220F-6L. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 115°C (TA), voltage - supply (vcc/vdd) 9.7V ~ 35V, package / case TO-220-6 Full Pack, Formed Leads.

Datasheet Request a Quote

In Stock: 7,789

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown500V
TopologyFlyback
Voltage - Start Up18.2 V
Voltage - Supply (Vcc/Vdd)9.7V ~ 35V
Duty Cycle-
Frequency - Switching19kHz ~ 25kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Load, Over Voltage
Control FeaturesSoft Start
Operating Temperature-20°C ~ 115°C (TA)
Package / CaseTO-220-6 Full Pack, Formed Leads
Supplier Device PackageTO-220F-6L
Mounting TypeThrough Hole
