STR-W6253MD

In Stock: 3,026

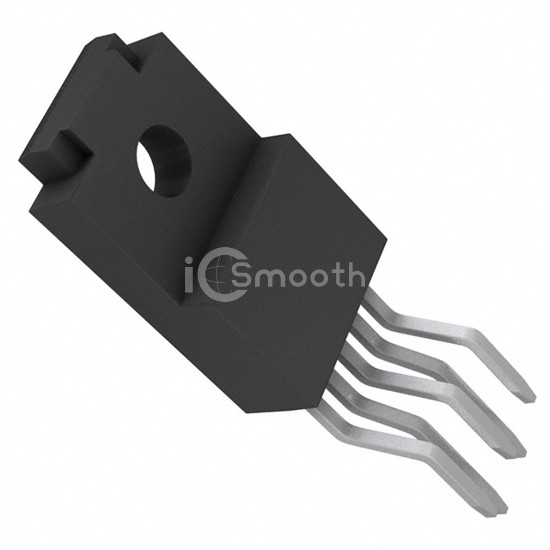

STR-W6253MD - Sanken - PMIC - AC DC Converters, Offline Switchers
REF: STR-W6253MD Sanken
STR-W6253MD

Sanken

IC OFFLINE SW FLYBACK TO220-5

STR-W6253MD is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. IC OFFLINE SW FLYBACK TO220-5. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 8V ~ 27V, package / case TO-220-5 Full Pack, Formed Leads.

Datasheet Request a Quote

In Stock: 3,026

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown650V
TopologyFlyback
Voltage - Start Up15.5 V
Voltage - Supply (Vcc/Vdd)8V ~ 27V
Duty Cycle75%
Frequency - Switching67kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-20°C ~ 150°C (TJ)
Package / CaseTO-220-5 Full Pack, Formed Leads
Supplier Device PackageTO-220-5
Mounting TypeThrough Hole
