SMA6865MZ-LF2451

In Stock: 90

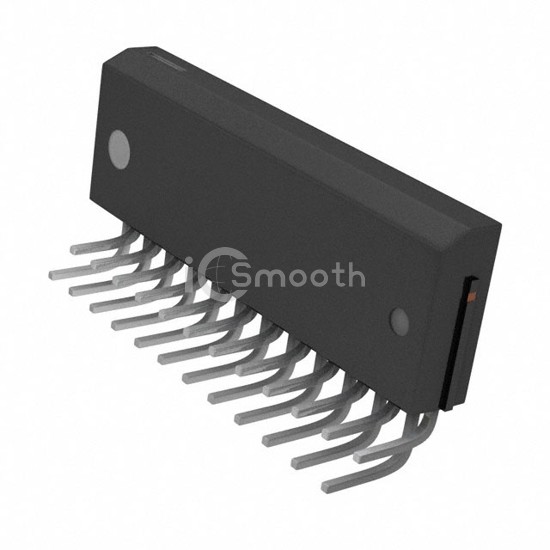

SMA6865MZ-LF2451 - Sanken - PMIC - Full, Half-Bridge Drivers
REF: SMA6865MZ-LF2451 Sanken
SMA6865MZ-LF2451

Sanken

IC BRIDGE DRIVER PAR 24SIP

SMA6865MZ-LF2451 is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC BRIDGE DRIVER PAR 24SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 20V, package / case 24-SSIP Formed Leads.

Datasheet Request a Quote

In Stock: 90

Tiered Pricing USD
1+ $5.4600 —
18+ $3.5294 -35%
108+ $2.8362 -48% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel2.5A
Current - Peak Output3.75A
Voltage - Supply20V
Voltage - Load400V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case24-SSIP Formed Leads
Supplier Device Package24-SIP, LF2451
