SMA6861MZ LF2452

In Stock: 2,517

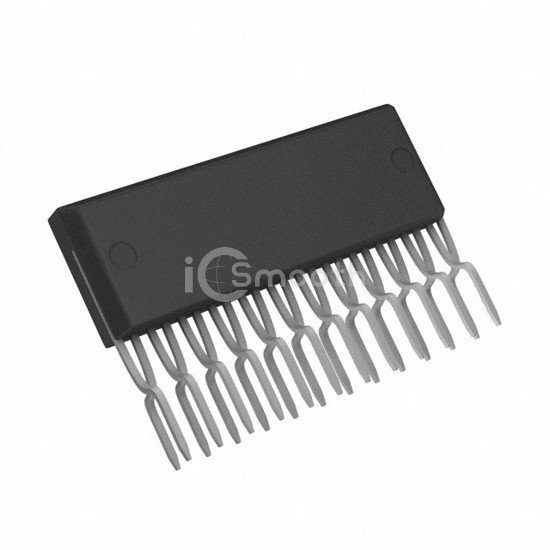

SMA6861MZ LF2452 - Sanken - PMIC - Full, Half-Bridge Drivers
REF: SMA6861MZ LF2452 Sanken
SMA6861MZ LF2452

Sanken

IC MOTOR DRIVER DC 3PH 24SIP

SMA6861MZ LF2452 is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC MOTOR DRIVER DC 3PH 24SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 20V, package / case 24-SSIP Formed Leads.

Datasheet Request a Quote

In Stock: 2,517

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel2A
Current - Peak Output3A
Voltage - Supply20V
Voltage - Load200V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case24-SSIP Formed Leads
Supplier Device Package24-SIP, LF2452
