SMA4036

In Stock: 13

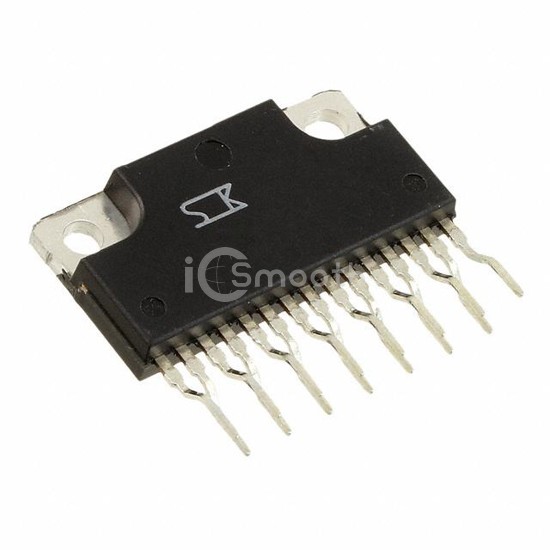

SMA4036 - Sanken - Transistors - Bipolar (BJT) - Arrays
REF: SMA4036 Sanken
SMA4036

Sanken

TRANS 6NPN DARL 120V 2A 15SIP

SMA4036 is a Transistors - Bipolar (BJT) - Arrays manufactured by Sanken. TRANS 6NPN DARL 120V 2A 15SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 15-SIP Exposed Tab, Formed Leads, current - collector (ic) (max) 2A.

Datasheet Request a Quote

In Stock: 13

Specifications

13 parameters
Product StatusActive
Transistor Type6 NPN Darlington
Current - Collector (Ic) (Max)2A
Voltage - Collector Emitter Breakdown (Max)120V
Vce Saturation (Max) @ Ib, Ic1.5V @ 2mA, 1A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 1A, 4V
Power - Max4W
Frequency - Transition50MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case15-SIP Exposed Tab, Formed Leads
Supplier Device Package15-SIP
